OHIO's Hybrid Engraving wins 2016 Golden Cylinder Award

The Hybrid Engraving System from OHIO Gravure Technologies was awarded the 2016 Golden Cylinder Award for Technical Innovation at the GAA conference.

OHIO Gravure Technologies has worked constantly through the years to improve linework resolution to challenge chemical etch results. Producing sharp text with traditional electro-mechanical engraving is a challenge, as the image data and engraving screen never match, so small edge cells are created that soften the image rather than sharpen, and full cells have a rough edge. Using fine engraving screens minimizes both effects but at the loss of ink volume.

OHIO's Hybrid Engraving System is named for its ability to mix traditional electro-mechanical engraving with a method more like chemical etch, on the same machine, in one operation. Instead of being restricted to the standard grid defined by the screen, cells engraved with Hybrid are moved to create a smoother edge and sharper lines. The Hybrid cells are shaped like traditional cells so there is no loss of ink volume, which means printers have little or no adjustments to make. Hybrid also helps to keep the engraving sizes more consistent with the original artwork.

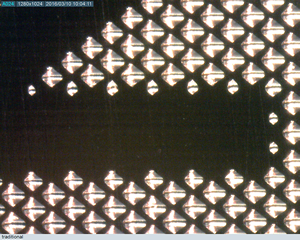

Traditional engraving edge

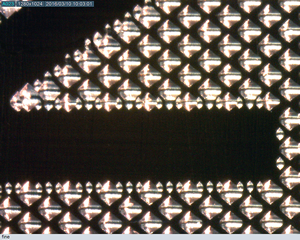

Hybrid Engraving edge

The Hybrid Engraving System is available for Spectrum and Prism engravers from OHIO Gravure Technologies. For more information, visit OhioGT.com.

The Golden Cylinder is awarded annually by the Gravure Association of the Americas at a fall conference. This competition is intended to promote the gravure process and to provide peer recognition for technical achievement. For more information and a list of past winners, visit GAA.org.

OHIO Gravure Technologies in Dayton, Ohio USA designs and manufactures advanced equipment for the global gravure printing market. The Engineering, Software Development, and Manufacturing groups work to provide innovative solutions to improve quality and productivity. Our engineering specialty since 1980 is our sub-micron accurate cutting system (Vision engrave head). We provide installation and support for our electromechanical engravers and the prepress layout software Collage for gravure printing.
