Contour Measurement

Available for Spectrum engravers and Prism Prime engravers

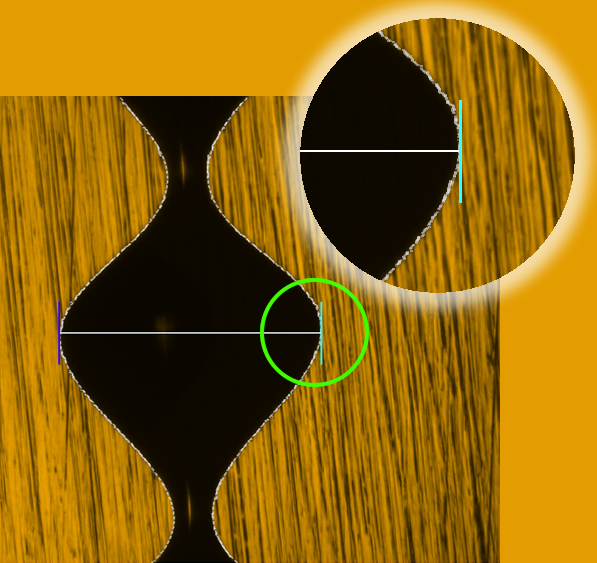

With the Contour Measurement software, test cut setup is reliable and automatic. This enhancement to EasyCell uses a new image processing method for virtually perfect cell measurement with no operator interaction.

This improvement works well with OHIO's Auto Documented Cylinder (with the DocuCell Capturing System and Vital Proof Multi-Color System) including the real-time display.

This improvement is included in embedded software (starting in version Available only  for Spectrum and Prism Prime engravers and for HS Engravers that have been upgraded to Spectrum software and controls.

Note: Non-standard cells may require operator attention.




OHIO Gravure Technologies in Dayton, Ohio USA designs and manufactures advanced equipment for the global gravure printing market. The Engineering, Software Development, and Manufacturing groups work to provide innovative solutions to improve quality and productivity, such as the award-winning Hybrid Engraving System. Our engineering specialty since 1980 is our sub-micron accurate cutting system (Vision engrave head). We provide installation and support for our electromechanical engravers and the prepress layout software Collage for gravure printing.
